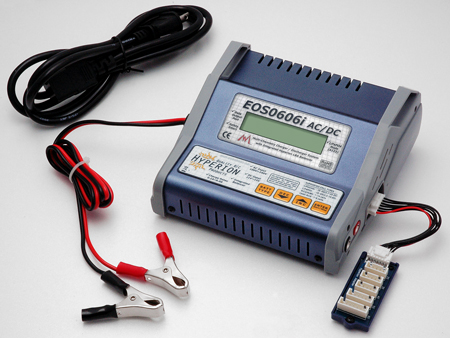

NEW! Hyperion EOS 0606i 6S 6A max CHARGER AC/DC, with Integrated
LBA balancer. LiPoly(3.7v), LiFePO4/A123(3.3v), Nicd, NiMH, and Lead-Acid
charge modes. Dataport for PC software. 11v~15VDC and 100v~240V AC Inputs -
Hyperion Balance Multi-Adapter included for 2S to 6S packs!
IMPORTANT TECH NOTES FROM HYPERION
Connection Order:
Always connect the MAIN
pack leads (the two +/- thick wires) to the charger FIRST, then insert the
BALANCE Connector into the charger balance adapter.
Disconnection Order:
Always
disconnect the BALANCE connector from the charger FIRST and then disconnect
the MAIN pack leads (the two +/- thick wires).
Special Features:
2 input power choices: Use AC 100V~240V or DC11V~15V
Powerful, yet compact and portable with wide support for battery types
Inegrated Hyperion LBA Balancer for Lipo & A123 based cells
Balance Multi Adapter for 2S to 6S Packs Included
Charge and Discharge Modes (and cycling for Nimh and Nicd)
Clear and easy to read LCD Screen with warnings common setup errors
Aluminum Case, Long Input Leads
Support Battery Types: 1-14cell NiCD & NiMH, 1-6 Lipo, Lion & Lead Acid
Charge Current: 0.1A~6A Max
Discharge Current: 0.1A~1.0A Max
Trickle Charge: 0 ~ 200Mah
Display: 2-Line 16 Character Blue Backlit
OUTPUT CORDS NOT INCLUDED WITH EOS0606I
