All EOS610i Net chargers have been
updated with the newest firmware upgrade 1.6
IMPORTANT TECH NOTES FROM HYPERION
Connection Order:
Always connect the MAIN
pack leads (the two +/- thick wires) to the charger FIRST, then insert the
BALANCE Connector into the charger balance adapter.
Disconnection Order:
Always disconnect the BALANCE connector from the charger FIRST and then
disconnect the MAIN pack leads (the two +/- thick wires).

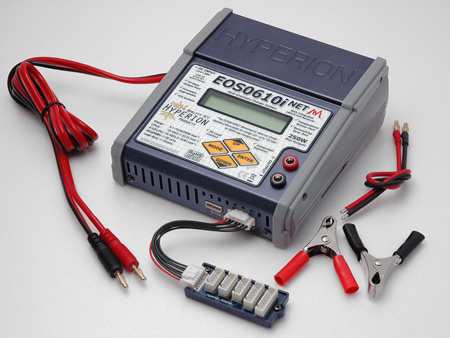

The EOS 0610i NET is an
extremely powerful (250W, 10A), versatile, easy-to-use charger with special
features for speed charging lithium packs up to 6S*. 2C rates are possible
even with our largest 6S packs. Integrated LBA10+ balancer has 300mA balance
power per cell. Terminal Capacity Selection, PS Load Control, PC Dataport
(PC software coming soon!), and User-Upgradable firmware round out this
fantasitic package. But don't stop there: *two of these chargers can be
Networked to allow charging two similar packs as a single unit, up to 12S
total at 500W charge power. Nothing else on the planet offers so much power
for so few $$ out of your pocket. Output Charge Cord/Connector set and
Hyperion Balance Multi-Adapter for 2S to 6S packs are included.
You may "Network"
connect 2, EOS610i's together, using option cable HP-EOS6-MSC. In this case,
you can charge 2 separate but similar Lipo, Lion, oe A123 packs as a single
unit, to make flight packs from 7S to 12S at 500W
max charge power.
Spec's:
Charges:
1-6 cells Lipo's, Lion & A123. 1-16 cell Ni-CD & Ni-MH in three modes:
Normal, Linear & Automatic. 1/12 cell Lead Acid.
Built-in
Hyperion LBA10/300 Balancer with 10A max rating and 300mA max balance rate
per cell.
0.1a - 10A Charge Current in 0.1a steps
250 Watts max charge output (Even with 6s Lipo)
Terminal Capacity Selection (TCS)
Rich Data Displays during and after charging
PC Port for data logging and firmware updates
Temperature Sensor Port
Wide Voltage Range 11v~28v for higher efficiency when charging high voltage
packs, and compatibility with a wider selection of AC/DC Power Supplies
Power Supply Amperage Control to allow reliable charging with lower output
power supplies
Input Cable with 4mm male connectors
Integral, Thermostat-Controlled Cooling Fan
Rugged Aluminum Case with Insulating End Caps
2-Line, 16-Char, Blue Backlit LCD Data Display
10 User-definable Memory Positions
