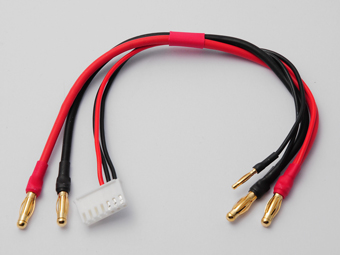

EOS Output Harness for Balance Charging 2S Car Packs such as ORION, TRAKPOWER and CHECKPOINT.

Fits EOS balance Chargers (EOS0403i, 0606i-x, 0610i-x) and LBA10. Battery-side has 4mm main bullet connectors, plus 2mm bullet for balance port on battery. SEE DIAGRAM HERE.

Because long wires and extra connectors in the balance circuit can potentially reduce accuracy of charging and balancing, this harness in made to connect directly to the Balance Port on Hyperion balance chargers (as seen in this picture).  However, if you prefer (or need the extra length) you may use the Hyperion multi-adapter which came with your EOS charger and plug the HP-LB10-CAR balance connector into the 6S port on the Hyperion multi-adapter.

If you have a charger which can charge 3.7v LiPo batteries, but does not have a balancer built in, you can use a Hyperion LBA10 Balancer between your charger and the EOSOUT-CAR02 harness, to balance charge your 2S Car pack.
